Killer Electric Dirt Bike – SUR-RON FIREFLY

Electric Dirt bike Game changer WITH PRICE STARTING AT 2000 USD

Electric Dirt Bike that’s going to be a Game Changer – SUR RON FIREFLY

Electric Dirt bike designed to the last detail with price tag of 2000 USD + UNDER 50kg

This Electric Dirt bike is made flawlessly. The quality is awesome, the parts used are high quality and the company behind it is very serious China Design and Engineering company. They pride themselves with their design capabilities and they are making efforts to supervise and make products that are actually designed from bottom up. No copy, no shitty parts. Pure R&D.

sur ron bee electric dirtbike

Their first concept drawing is not far away from production model

concept drawing

So how exactly can they sell it for 2000 + USD and remain profitable?

Because of Aluminium forging (Forging is a manufacturing process where metal is pressed, pounded or squeezed under great pressure to produce high-strength parts. Forged aluminum is ideal for applications where performance and safety are critical but a lighter-weight metal is needed for speed or energy efficiency.).

The Frame – weight: 7,8 kg


For Aluminium forged parts you need to invest more money at the beginning, but afterward, parts are inexpensive and still super smooth looking.

As you will see later on; the chosen components of the bike are HIGH END, but not the latest tech (thats also keeping the price low). The whole concept is made so most of us can afford it, and still, the speed and power is not jeopardized. Thats why Sur-Ron will be the talk of the 2018. We are pretty sure that they are going to crush the Electric Dirtbike market.

Who are SUN RON Dirt bikes?

Hangzhou Qiu Long Technology Co., Ltd. was established in December 2014, the company has a team of 40 R & D engineers and designers. They are located in the traditional automobile and motorcycle capital of Chongqing and China’s Internet capital of Hangzhou. They are made out of two teams. Hangzhou team is responsible for intelligent system research and development, Chongqing team responsible for vehicle research and development. Together with the vehicle for independent design, research and development; complete intelligent system design, research and development, user experience tracking and data collection, analysis.

Overview of Electric Dirt bike from SUN RON called FIREFLY

( light bee – literal translation)

electric dirt bike

FRAME DESIGN AND DIMENSIONS

The Electric Dirt bike frame weight is about 7.8 kg made with 6,000 tons of pressure. Fully forging lightweight aluminum alloy frame with high-quality inspection standards

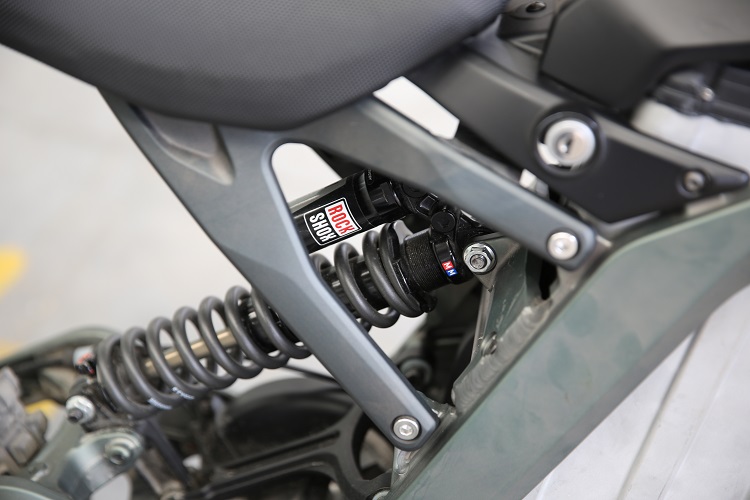

FRAME DETAIL

Professional off-road vehicle rear and front angle,high seating position and comfortable soft cushion

BIKE DESIGN TECHNICAL SPECIFICATIONS



  • 1870mm
  • 780mm
  • 1040mm
  • 270mm
  • 1260mm
  • 50kg
  • 24kg
  • 26kg
  • 100kg

TIRES AND BRAKES



  • 70 / 100-19
  • 70 / 100-19
  • 19×1.4
  • 19×1.4
  • to the four-piston hydraulic disc brake
  • to the four-piston hydraulic disc brake

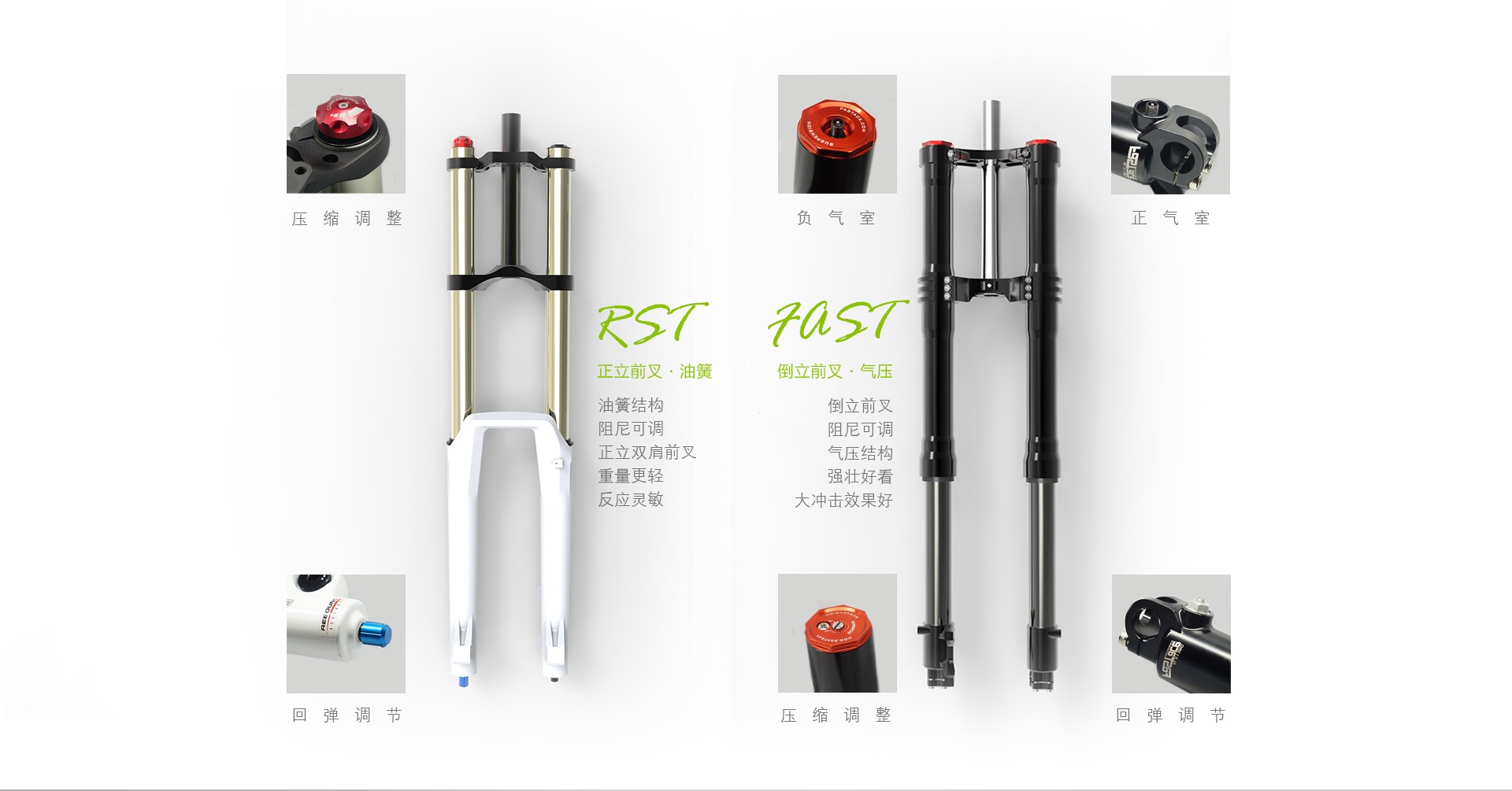

They offer options for buyers for Dirt Bike front fork; RST or Fastace

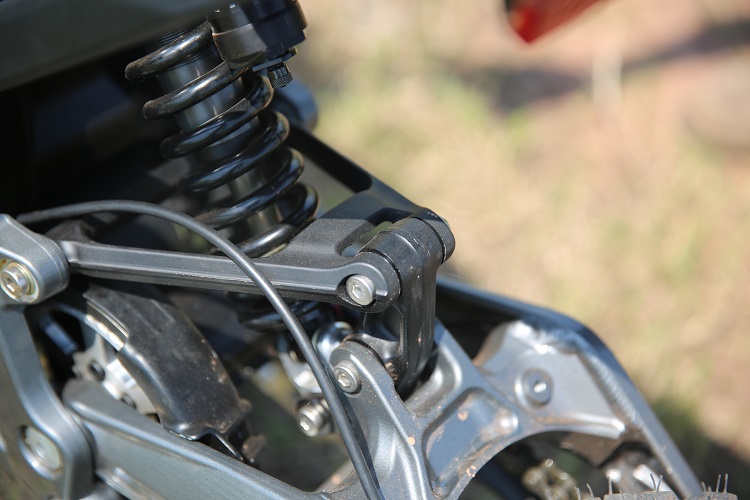

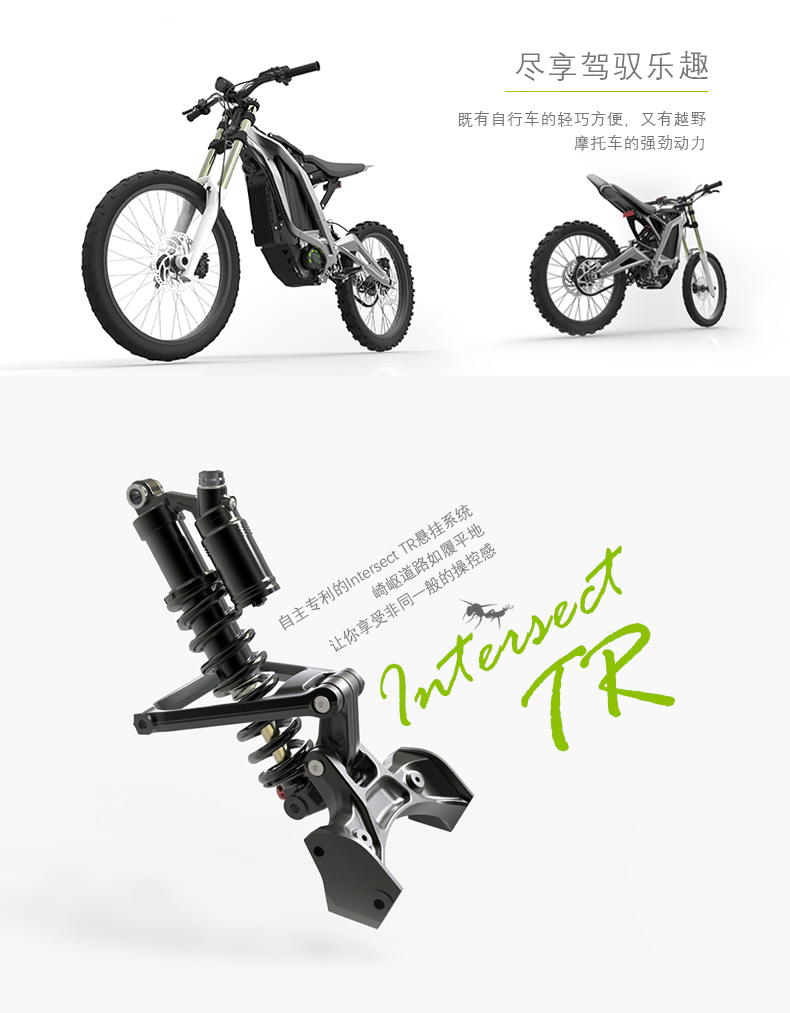

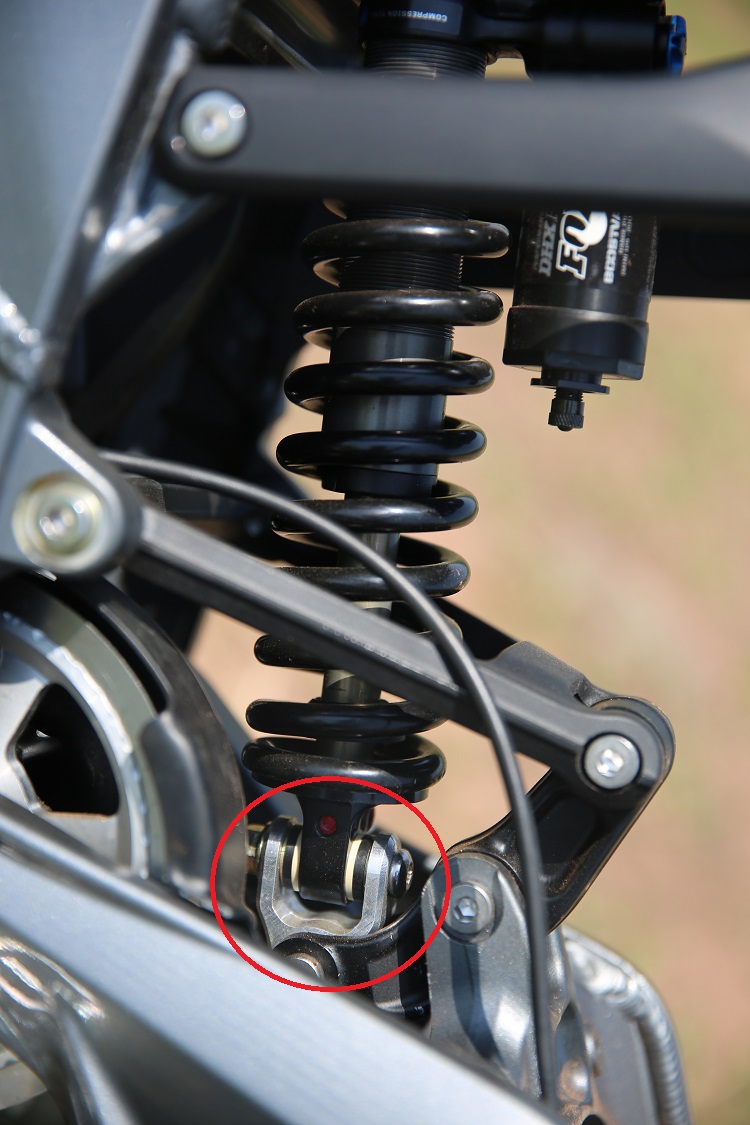

Interesting Linkage

linkage

THE BATTERY AND CONTROLER

electric dirt bike cntrl

One of the reasons for their low market cost is their self-made the controller (48-80V) with all features we are used to. Torque control, speed limit etc.

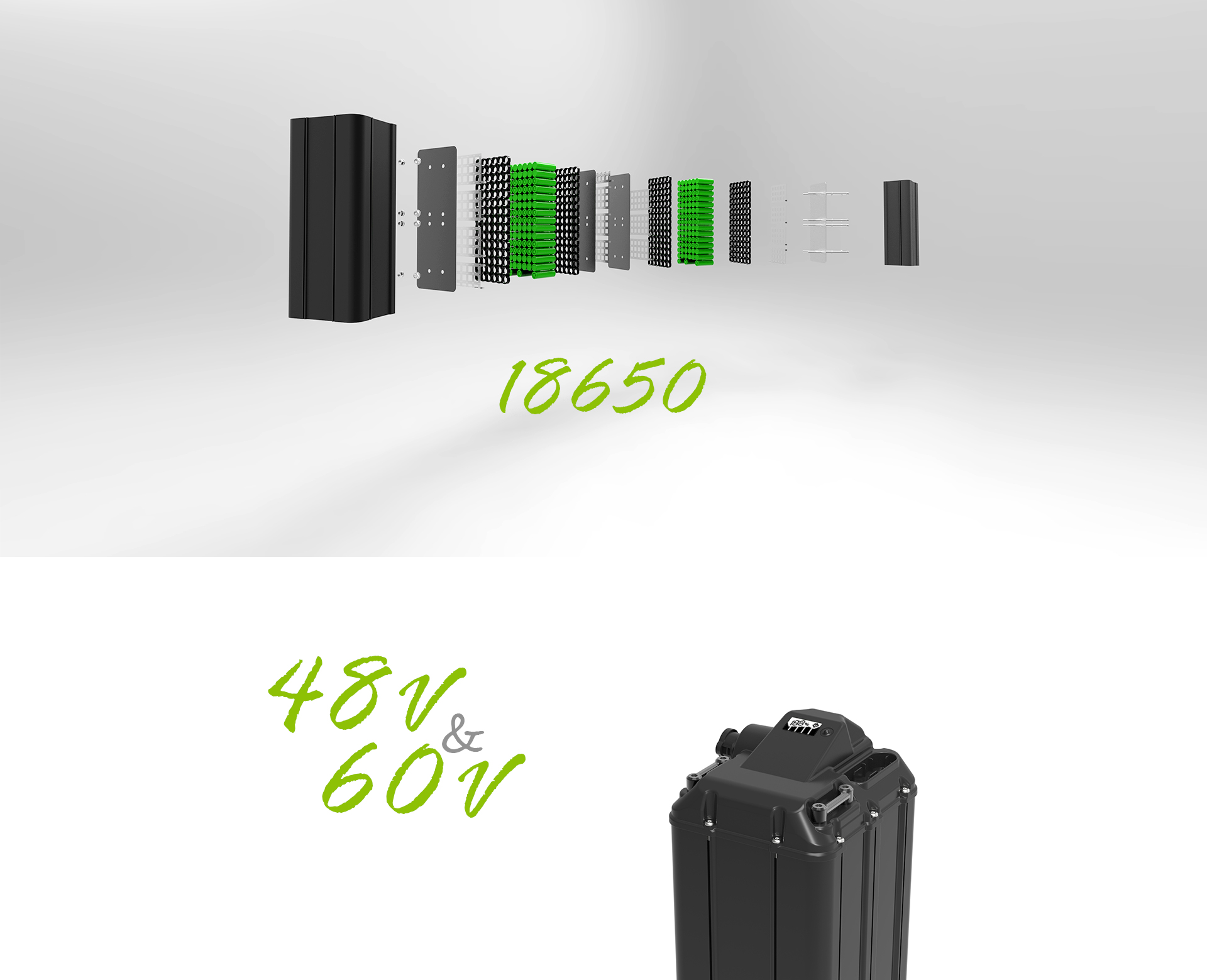

They use Panasonic 18650 pf cells and assemble them themselves in Abs case packs shown above

There are two versions of this Electric Dirt Bike BATTERY SYSTEMS:

1.First Version uses 140 Panasonic 18650 cells – 48v 25 ah

2.Second version uses 176 Panasonic 18650 cells – 60v 32ah

BMS STATISTICS

High-power BMS
SOC statistics
4 temperature sensor real-time monitoring
Host computer management program and data interface
The battery pack is rated for 500 cycles at 80% discharging

dirt bike battery

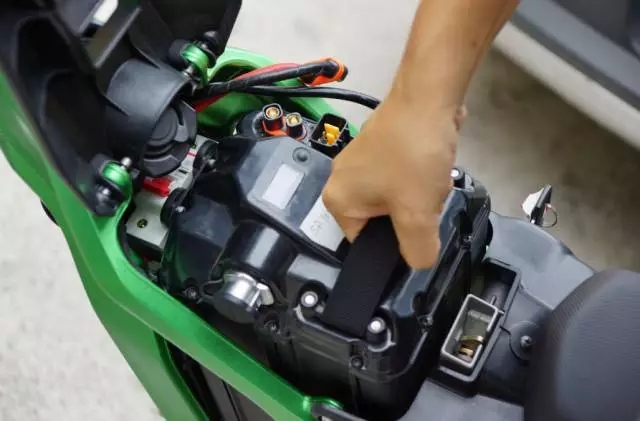

The battery case is removable – so it’s not necessary to have infrastructure around to recharge the bike. Its light enough to take it home and plug it into the wall socket

removable battery

THE MOTOR PERFORMANCE AND TRANSMISSION

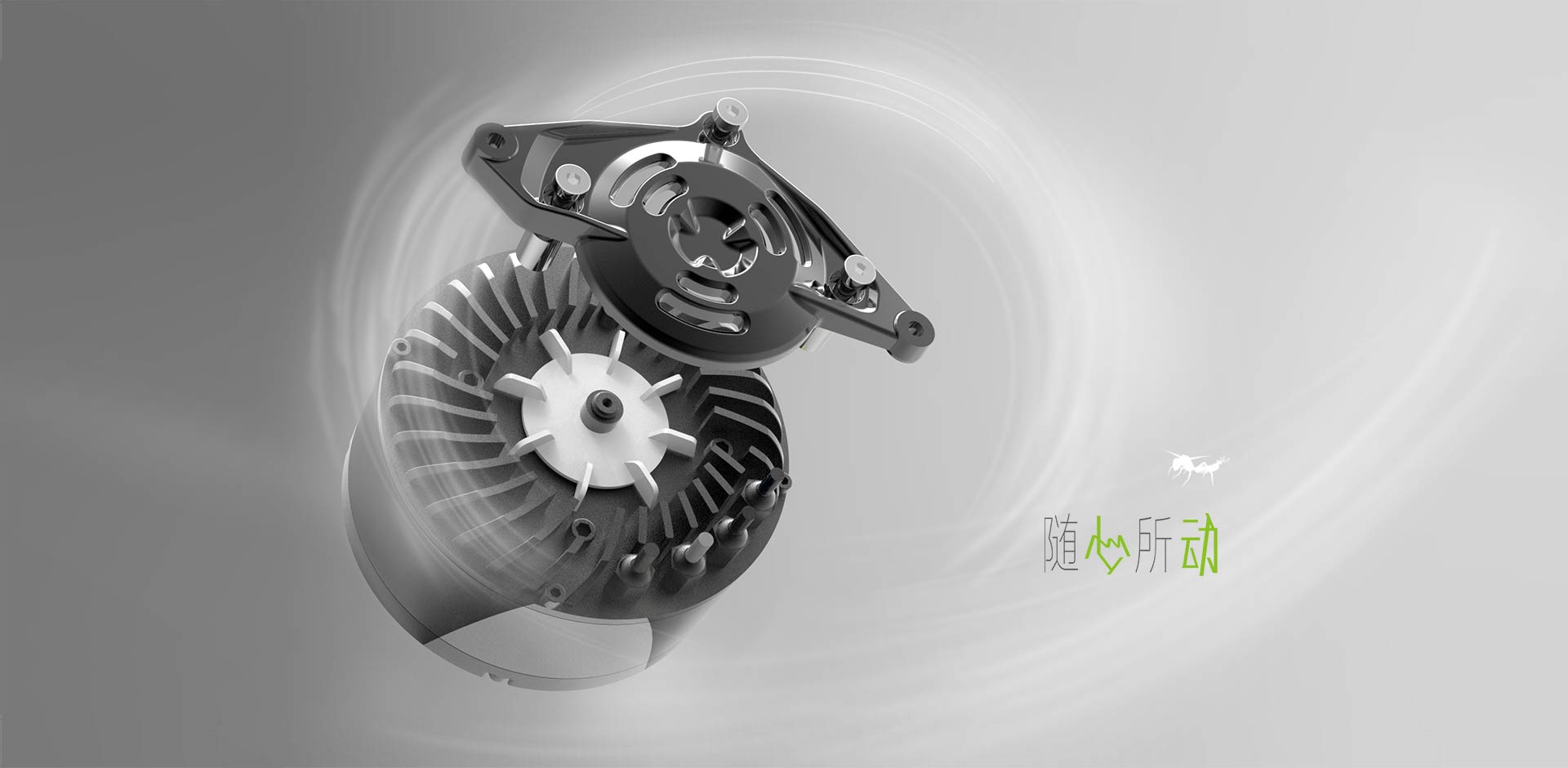

Motor used on this bike is Golden motor. Its one of those Axial flux motors that are known for good performnace

Model: HPM3000B — High Power BLDC Motor
1. Voltages: 48/72V
2. Rated power: 2-3KW
3. Peak power: 6KW
4. Speed: 3000-5000rpm
5. Rated torque: 10 Nm
6. Peak torque: 25 Nm
7. Efficiency: >90%
8. Dimensions: 18cm dia. 12.5cm height
9. Weight: 7.3kg(air),8kg(water)
10. Cooling: air or liquid cooling

TOTAL SYSTEM TOURQ IS 200 Nm

You get this number by multiplying the belt and chain ratio with the motor tourq

Performance and transmission ( Double stage transmission )

  • 4500r / min
  • forced air cooling
  • 35 °
  • 100km (20km / h speed)
  • 200N.m
  • 1: 7.6
  • belt + chain
  • HTD 8M CXA drive

DASHBOARD AND SYSTEM COMPUTER

The dashboard features all functions we are used to. We don’t feel its necessary to count them all here

Information avaible over dedicated mobile app

Real-time understanding of vehicle information, view the driving track, Record the history of the trip, but also understand your APP GPS vehicle positioning, security, security, more secure APP In the riders to share the fun of riding, discuss light bee play, more interesting APP

THE PRICE

48v battery electric dirt bike is 2000Usd

60v battery electric dirt bike is 2350 Usd

Shipping to USA and EU is around 750 usd

All together taken into account, it’s the smartest production Electric Dirtbike from China up to this date in terms of what market actually needs right now

Check out the video on this article
