Super Soco electric motorcycle is a piece of art, and its comming from China

by EvNerds June 18, 2017, 2:09 pm 7.2k Views

Crowd-funded in China the ‘Super Soco’ electric motorcycle project has just got off the ground in funding goals. The design is inspired by Caffe racers and may we say: Its FANTASTIC !

Design and performance is awesome, What about the price ?

The bike will be available in two forms, both visually identical. The cheaper model is the TS800R, which sells for around €900 ($1000), while the TS1200R costs around €1075 ($1200).

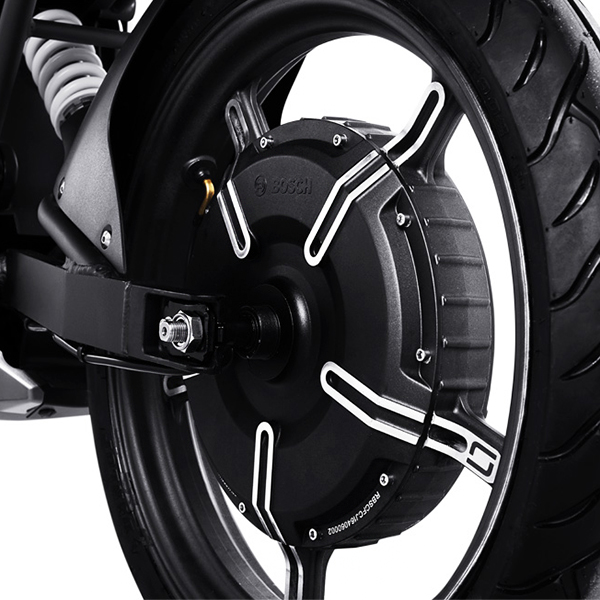

The Chinese company was smart. Unlike Zero motorcycles, they wanted something cheap with less, but still enough power to put the smile on riders face. So they used Hub motors that are cheaper option then putting central motor and gearing it down from big RPM to lower RPM. BOSCH jointly develop new high-performance 17-inch wheel diameter power motor, using the new C35 magnet specifications that puts out 1500 continues watts.

We also like the front lights, removable 18650 battery, app

Specifications :

physical dimension

Color / decals length * width * height wheelbase anteversion steering angle the minimum ground clearance seat height
TS LITE 1898*703*1059mm1323mm25°40°198mm770mm
TS PRO 1898*703*1059mm1323mm25°40°198mm770mm

Electric drive system

Battery type cell brand voltage capacity of the standard charging current motor motor control
LITE TS 18650 lithium battery domestic line 60V 20Ah 3A JYX FOC
PRO the TS 18650-lithium Panasonic / Samsung / the LG 60V 26ah . 4A the BOSCH FOC

Motor rated power motor torque controller limits the current meter instruments color meter automatic brightness adjustment
LITE the TS 900W 100N.m . 30A the LCD liquid crystal instrument white backlight
PRO the TS 1300W 120N.m . 35A the LCD liquid crystal instrument white backlight

Performance parameters

Mileage gradeability rated maximum load braking systems the front brake mode rear brake mode braking distance dry front suspension
LITE the TS 80KM (20km / H) 13 is [deg.] 150KG independent front and rear Disc 220mm, dual floating caliper 180mm platter, single floating caliper <1.7 (20km / H) 35mm inverted hydraulic shock absorber
PRO the TS 100KM (20km / H) 15 [deg.] 150KG independent front and rear Disc 220mm, dual floating caliper 180mm platter, single floating caliper <1.7 (20km / H) 35mm inverted hydraulic shock absorber

Total stroke before the suspension after the suspension after the total suspension travel front front tire size rear rear tires
LITE the TS 110mm center hydraulic shock absorber 30mm . 5 lightweight aluminum spoke wheels MT1.5-17 70 / 100-17 . 5 lightweight aluminum spoke wheels MT2.5-17 100 / 70-17
PRO the TS 110mm center hydraulic shock absorber 30mm . 5 lightweight aluminum spoke wheels MT1.5-17 70 / 100-17 . 5 lightweight aluminum spoke wheels MT2.5-17 110 / 70-17
