Mechane electric bicycle and their ecological movement

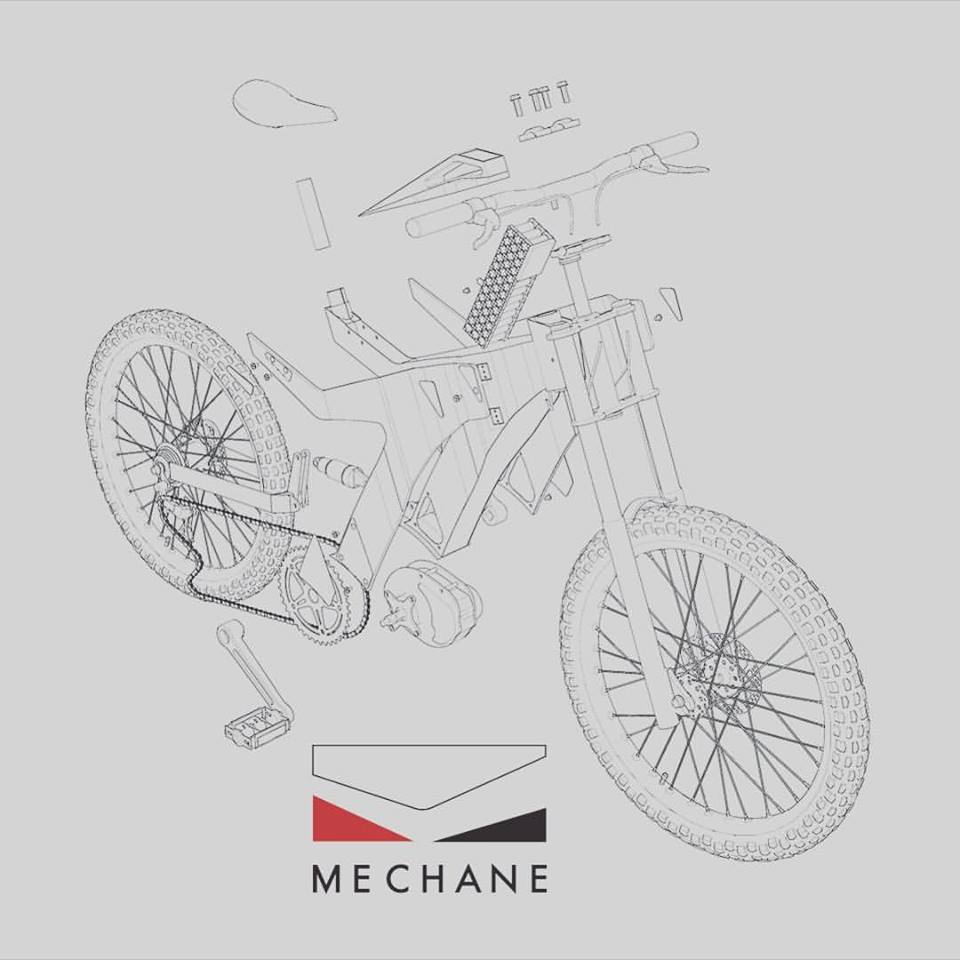

Electric bicycle ERMES is built by Italian startup company Mechane. This project aims to promote sustainable mobility through innovative electric bicycle ( ecological materials: wood instead of plastic details ). Their vision of ERMES Ebike is also a statement: “Move more with electricity”.

That is exactly what Mechane team was doing themselves. Raising awareness about personal mobility in Europe, and on a big Electric bicycle tour around the USA. In this text we will concentrate more on this ebike, rather then on the trip and tour. However, if you wish to read more about Mechane adventures in USA, just go to the end of the article and check out the video!

ERMES ELECTRIC BICYCLE SPECIFICATIONS:

Here are the main technical characteristics of Ermes, ebike that will travel from Miami to Venice, passing through Japan and Russia.

Aluminum frame part: single body resistant to common stresses, can also be used on dirt track. Designed to accommodate batteries and accessories inside.

Wooden frame part: light structure in laminated wood wrapping the aluminum body absorbing the vibrations. Made by hand and with eco-friendly products by professionals in the skateboard industry.

Full suspension: front fork with 200 mm travel. Rear, 200 mm travel shock absorber

Shimano brakes: hydraulic discs, 203 mm

Shimano Alfine: integrated gearbox / 11-speed hub. With transmission ratio of 409% + control with the instantaneous release, multi, and bidirectional release.

ERMES ELECTRIC BICYCLE FRAME DETAILS:

Frame:

• Full suspension
• aluminum box

Dashboard:
• integrated display

Suspension:
• Front DNM Volcano-8S 800 mm
• Rear DNM Burner RCP-2S

Wheels:
• from 27.5 ”
• Shwalbe Super Moto-X 2.8 “tires

Disk brakes:
• Hydraulic Shimano
• 203 mm front disc
• Rear 180 mm disc

Engine:

• OliEds Motor
• max torque 80 Nm
• rated continuous power 250 W
• rated voltage 36 V

Battery:

• removable from 1000 Wh / with usb port
• 60 km autonomy (maximum assistance) at 120 km (minimum assistance)

This electric bike comes with an Italian ebike motor. The OLIEDS mid-motor is the heart of “Ermes”, made with eco-friendly and recyclable materials, comes from Forlì, but for the rest, the e-bike designed by Stefano Celegato and Alessandro Cerrone has components that come from the province of Venice (the wooden frame is made by a company from Monza).

OliEds Mid-Motor for electric bicycles used by ERMES

Olieds is a new name for us. The motor is Italian made 250-watt mid-motor drive with 3.9kg weight and 80 Nm of torque

The driving torque shows that the motor is designed to deliver a maximum thrust up to a cadence of 60 rpm, while maintaining a high motor output even at higher rotational speeds.
The power of a motor is calculated by multiplying the torque by the angular rotational speed. As a result, as the cadence increases, the power increases to a peak point that allows cyclists to reach their maximum riding speed (which is however limited to 25 km/h as required by law).

This is the OLIEDS SITE

Here are some of cool California, Grand Canyon shots…



ELECTRIC MOUNTAIN BIKE NETWORK VIDEO ABOUT MECHANE COMPANY AND ERMES EBIKE TRIP

Mechane company has really cool instagram page, check it out here

Mechane webpage
