MIG Titan Electric Motorcycle by smc polytech moscow team

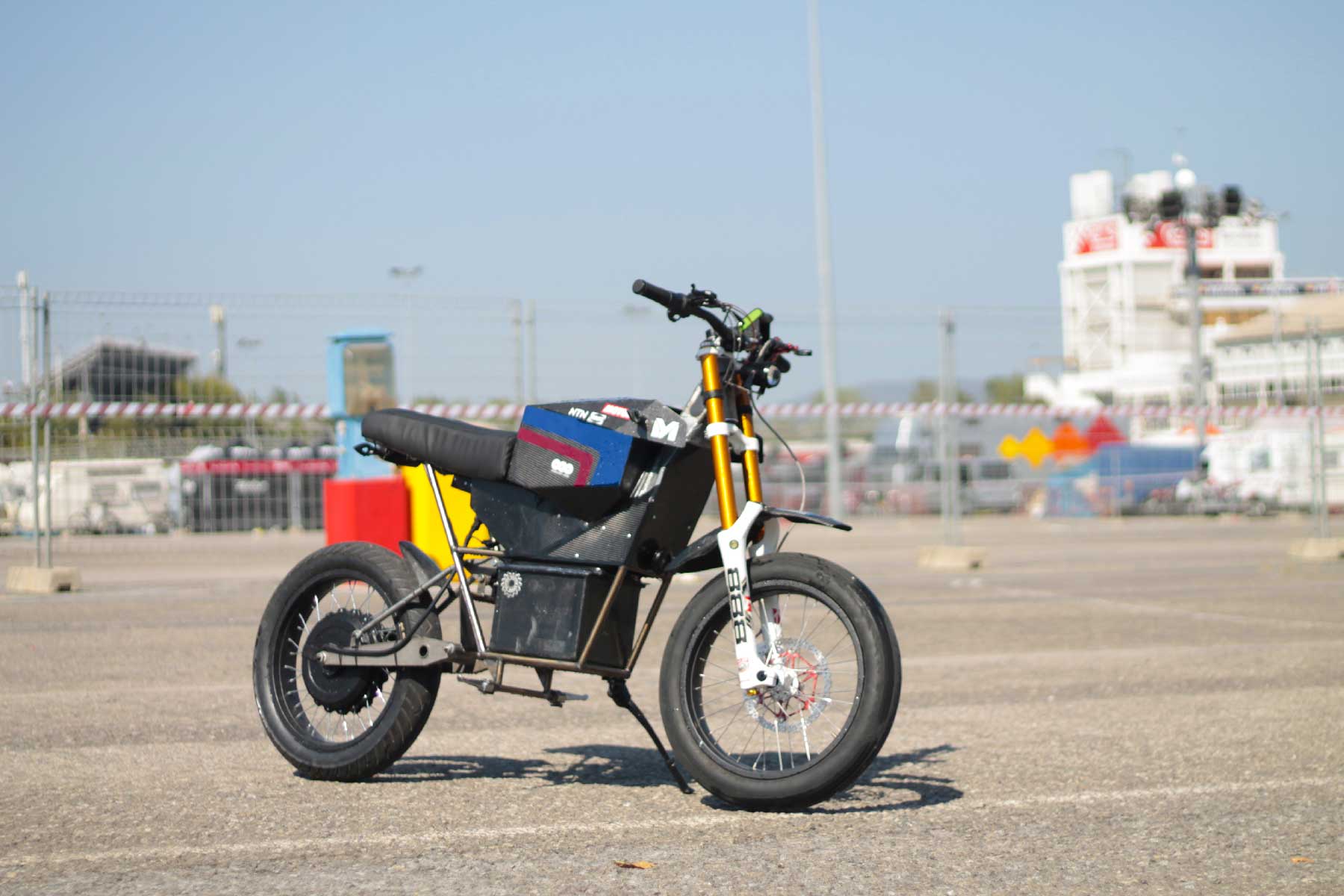

MIG Titan Electric Motorcycle

MIG Titan by smc polytech moscow team

Specifications MIG-Titan

Length: 1842 mm
Width: 730 mm
Height: 1040 mm
Wheelbase: 1342 mm
Ground clearance: 150 mm
Max speed: 80 km/h
Weight: 45 kg
Max load: 125 kg
Average power reserve for driving in various road conditions
with variable load: 60 km

Type: Three-phase asynchronous electric motor (motor wheel)
Max power: 2 h.p.
Max power: 3,8 kW
Max torque: 55 Nm

Electrical equipment:
Battery: Elmoto Li-ion
Battery Capacity: 31,5 Ah
Voltage: 48 V
Controller: Elmoto
A step-down transformer: 12 V

Frame: Tubular Spatial Titanium
Front Wheel Suspension: telescopic fork with hydraulic shock absorbers double acting
, 4 types of adjustments
Rear Wheel Suspension: Lever on spring-hydraulic shock-absorbers of bilateral action, 2 types of adjustments
Front wheel movement: 200 mm
Rear wheel movement: 55 mm
Tire size: front – 3,6-16″, rear – 4,2-16″
Front Brakes: Disc, hydraulic 4-piston, the diameter of the front disc: 203 mm
Rear Brakes: Disc, hydraulic 2-piston, the diameter of the front disc: 203 mm
