Victory electric motorcycle

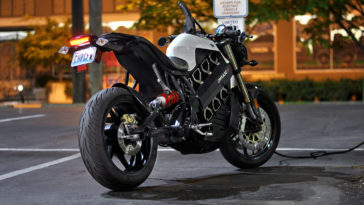

2016 Empulse® TT – price $19,999 usd

This is a street legal electric race motorcycle. Accelerating up to 100MPH+ and the battery fully charges in as little as 3.9 hours. Where it matters most, the Empulse TT is fast. It is 10,400 watt hours of proof that Victory doesn’t just prove performance, they advance technology.

Lightning in a throttle. #EmpulseTT #RideOne

A post shared by Victory Motorcycles (@victorybikes) on

1. Battery

10,400 WATT-HOUR

This is the fastest charging battery on the market. Full charge in 3.9 hours, and it comes with a 5-year 100,000 mile warranty

battery





Source: Victory motorcycles



2. Electric PowerTrain

Liquid cooled, permanent magnet, AC electric motor with regenerative braking and instant torque delivery. Rider selectable sport mode delivers 20% more power.

powertrain

Source: Victory motorcycles

3. Adjustable Suspension

Tune the inverted 43mm front forks and the rear suspension to your riding style.

Source: Victory motorcycles

4. Regenerative Braking

When you let off the throttle, the motor still moves, the wheels still turn, and the energy in the drivetrain is transferred back into the battery system.The dual disc Brembo® brakes go from 30-0 MPH in 45 feet for total control.

braking

Source: Victory motorcycles





Full Specifications

ABS/Cruise ControlNot Equipped
Curb Weight470 lb (213 kg)
EmissionsNone



ENGINE & DRIVETRAIN

Transmission Type6-speed gearbox with multi-plate
Drive/Driven ClutchHydraulic activated wet clutch
Charging System3.9 hrs (Level II / 0 to 100% SOC) | 8.9 hrs (Level I / 0 to 100% SOC)
BatteryBrammo Power Lithium Ion
Battery Capacity10,400 watt-hour
Battery Voltage103.6 volts / 117.6 volts (max)
Motor TypeInternal Permanent Magnet AC



Performance

Peak Power54 hp
Max Speed100+ mph / 161 km/h
Peak Torque61 ft-lbs



Suspension

Rear SuspensionAdjustable Direct-Acting Shock
Front SuspensionAdjustable 43mm Inverted Forks



Brakes

Rear BrakesBrembo single disk with dual piston Hydraulic Brembo Brake Caliper
Front BrakesDual 310mm Brembo floating disks with twin 4-piston Radial Mount Brembo Brake Calipers
Brake System TypeRegenerative Braking- extend driving range and provide familiar rider feedback



Tires / Wheels

Rear Wheel17” x 4.5”
Rear TiresContinental Sport Attack II 160/60 ZR17 69W
Front Wheel17” x 3.5”
Front TiresContinental Sport Attack II 120-70 ZR17, 58W



DIMENSIONS

Wheelbase58.0” / 147.32 cm
Seat Height31.5” / 80.0 cm
Rake/Trail24°/3.8 in (96.52 mm)
Ground Clearance7.3” / 18.54 cm
Overall Length (in./mm.)81.3” / 206.5 cm
Carry Capacity368 lbs / 167 kg



Features

InstrumentationLCD display; speed, tach, odometer, gear position, energy consumption, battery status, estimated range and system status
Colors (Base)Titanium Silver and Havasu Red
Color SwatchTitanium Silver and Havasu Red
