ZUKBOARD is an electric scooter like no other!

Folding scooters is now being widely recognized as an alternative transportation vehicle. The market is very competitive and each year new models are launched by product developers. But let’s talk about the philosophy behind designing ZUKBOARD CITY and discuss why ZUKBOARD CITY is a unique product!

zukboard electric kickscooterZUKBOARD development team started with an extensive market survey in order to understand customers real needs. Customers usually express their need in vague terms such as “good riding experience”, “slow battery drain rate”, “reliable” and so on. For a couple of months, forty general needs have been collected from customers and they were sorted and finally summarized into a list of eight real needs.

zukboard-electric-kick-scooter72

Those needs include Smooth Riding Experience, Safety, Ease of Maintenance, Ease of Modification, Long Mileage, Light Weight, Foldability and Aesthetic. It is worth mentioning that all those forty needs do not have an identical priority, therefore, the development team prioritized customer demands.

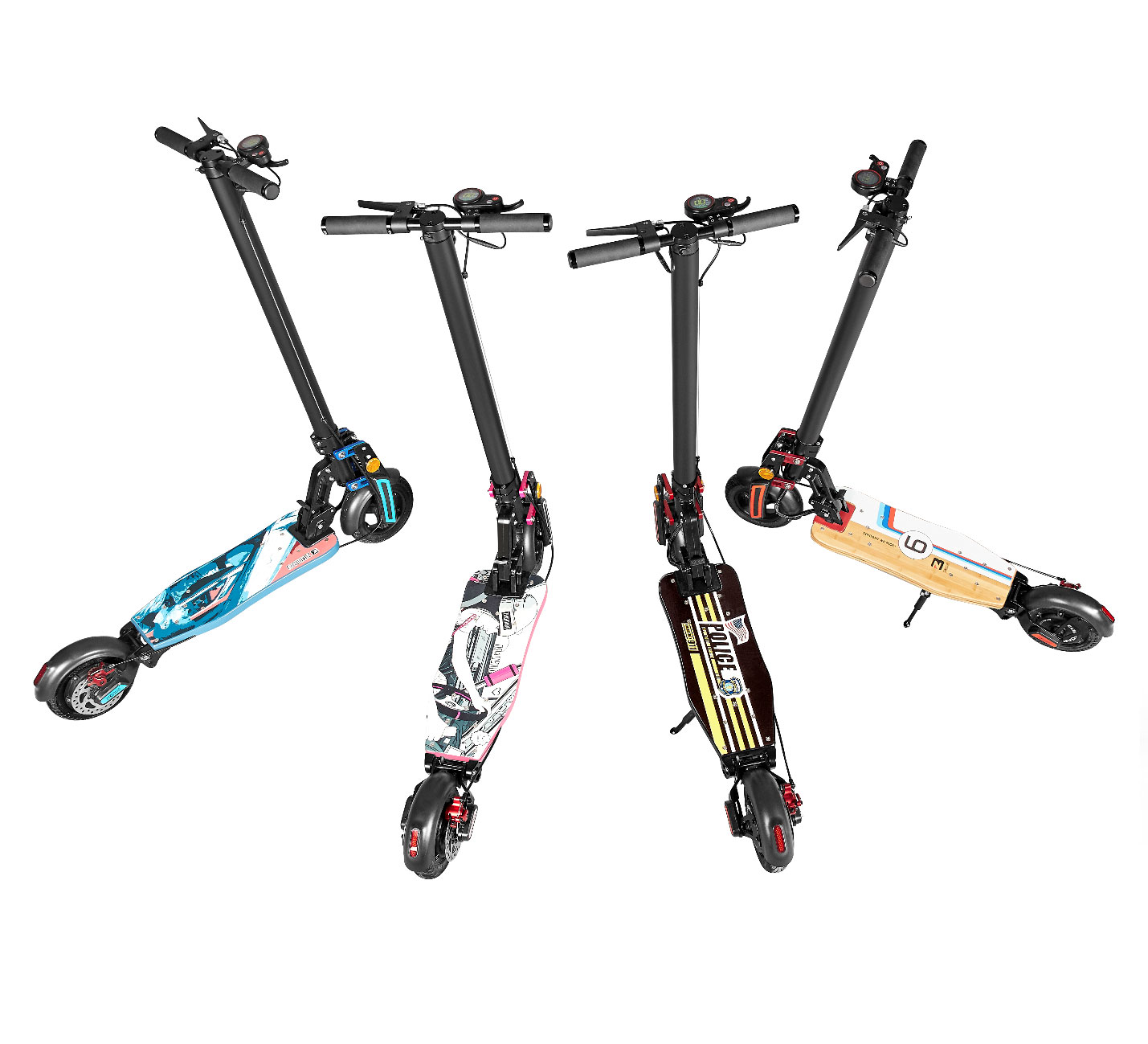

zukboard-electric-kickscooter

Safety and Smooth Riding Experience are the most important demands. Ease of Modification and Ease of Maintenance both have an equal priority and are the third important demanding needs. ZUKBOARD’s design team adopted Quality Function Deployment (QFD) and translated every single customer demands into an engineering characteristic. In fact, the development team inventively respond to each demand with an engineering language. For an instant, in order to develop a product that satisfies “ease of modification,” the scooter should be designed in accordance with modular design philosophy. That includes interchangeable wooden deck, interchangeable front fork, interchangeable front wheel, interchangeable front suspension and interchangeable front fork plastic cover available in different choices.

We came up with a unique suspension system that includes front and rear coil springs shock absorbers, silicon damping pad and a wooden deck. The silicon pad absorbs the low-frequency vibrations. Front and rear shock absorbers damp mid-range frequencies and finally, the wooden deck absorbs high-frequency vibrations. The combination of these systems guarantees a smooth ride.

zukboard-electric-kickscooter2

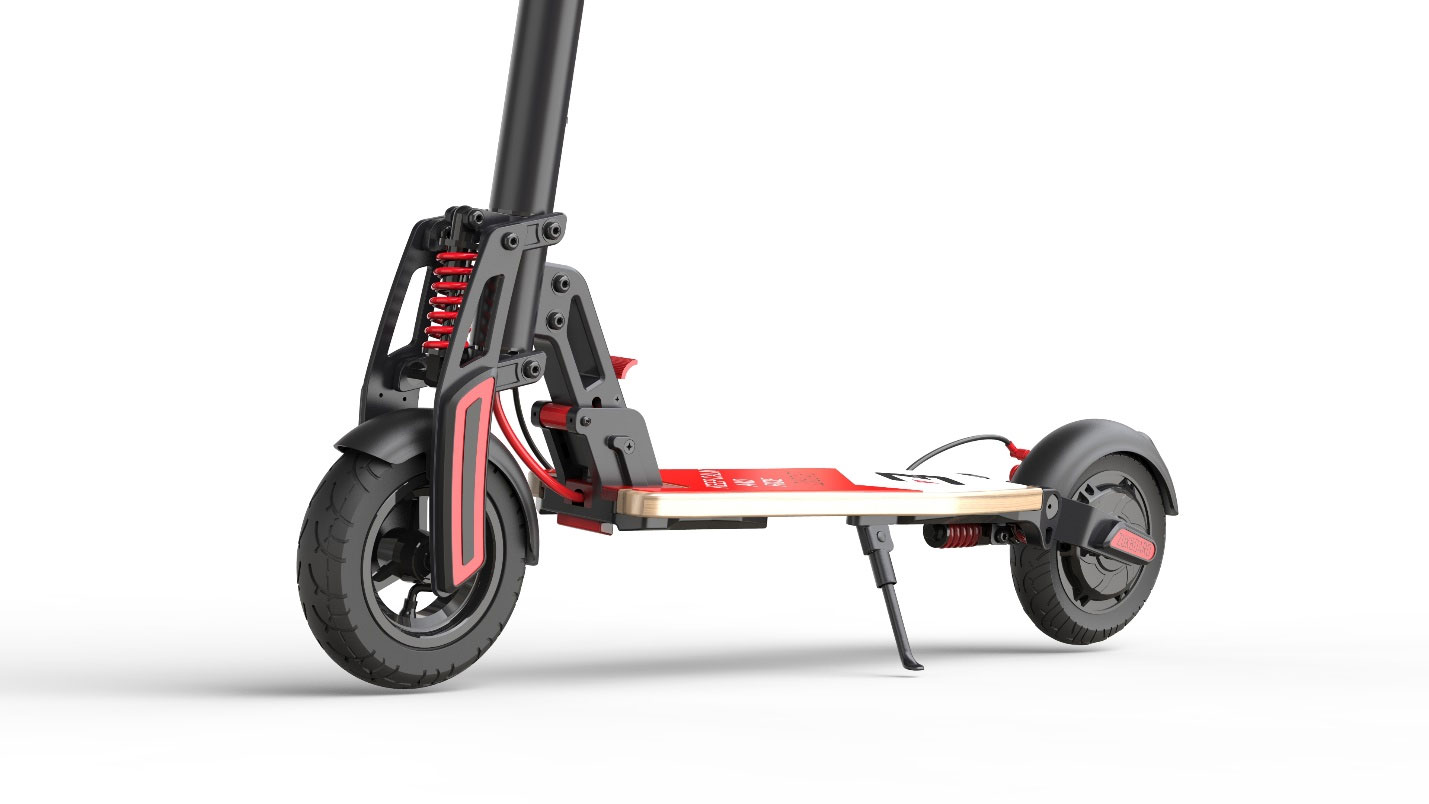

Zukboard front beefy front girder suspension

zukboard-electric-kickscooter-2

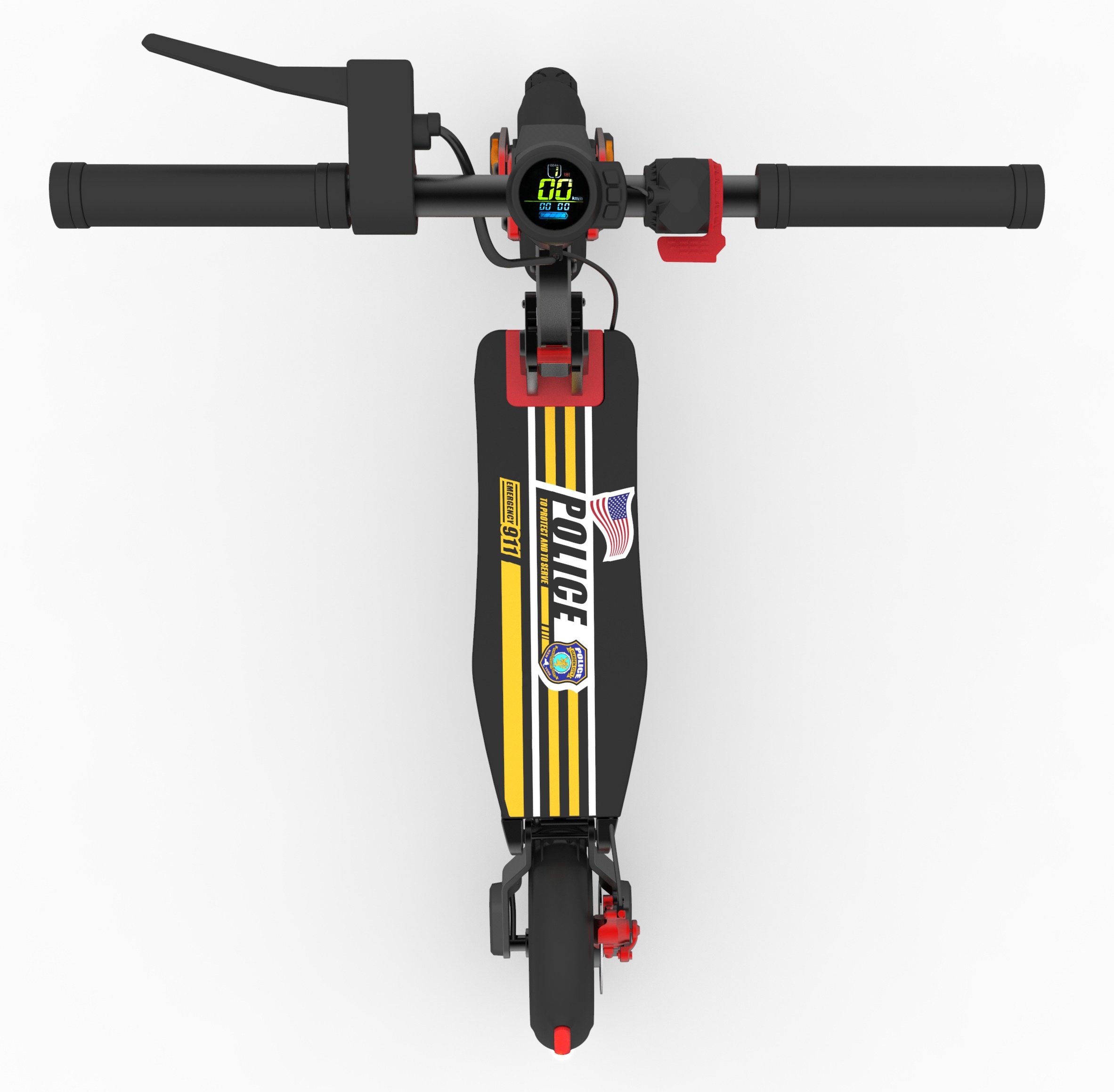

ZUKBOARD covers many different styles in response to customer needs. Night Right, Police, Racing, Girl and Boy Drifter are among the available interchangeable deck options. Each wooden deck comes with a unique set of colors which definitely satisfies you.zukboard-electric-kickscooter-color

Instead of using typical liquid spray painting which is not durable, powder coating paint is used to secure long-term durability. The rear drive 300 Watt hub motor generates 18 N.M which means the maximum incline angle rating of a scooter is 15 Degrees. ZUKBOARD also use an integrated Mechanical and Electrical braking system in a way that the brake lever in half throttle activates medium level EBS and in case the rider pushes the lever in full the mechanical disk braking system is activated. This innovative integration increases the safety at the same time maximizes your disk brake pad lifespan.

kicscooter-disc-brake-lifespanZUKBOARD works with reputable and reliable suppliers and manufacturer and has its own self-developed supplier selection criteria. In order to produce a flawless product ZUKBOARD designed and developed a series of quality criteria and inspection strategy. This makes us top-notch and also makes ZUKBOARD CITY the best in its class.

zukboard-electric-scooterSuspensionFront/Rear Coil Springs + Silicon Damper

Net Weight 14.5 KG

Motor Power 350Watt

Wheel Size 8Inches

Drive Type Hub Drive

Max. SpeedUp to 35KM/H

Max. Torque18 N.M

Deck Type Bamboo + Canadian Maple

Head Light COB-LED

Brake Light LED

Brake System Disk + EBS

Battery 36V 6.4, 7.8 and 1.5 Ah LG Cell

Controller Sinusoidal Drive, 14A.

Deck Availability Five Designs

Charger 42V 2A

Max Load 100 KG

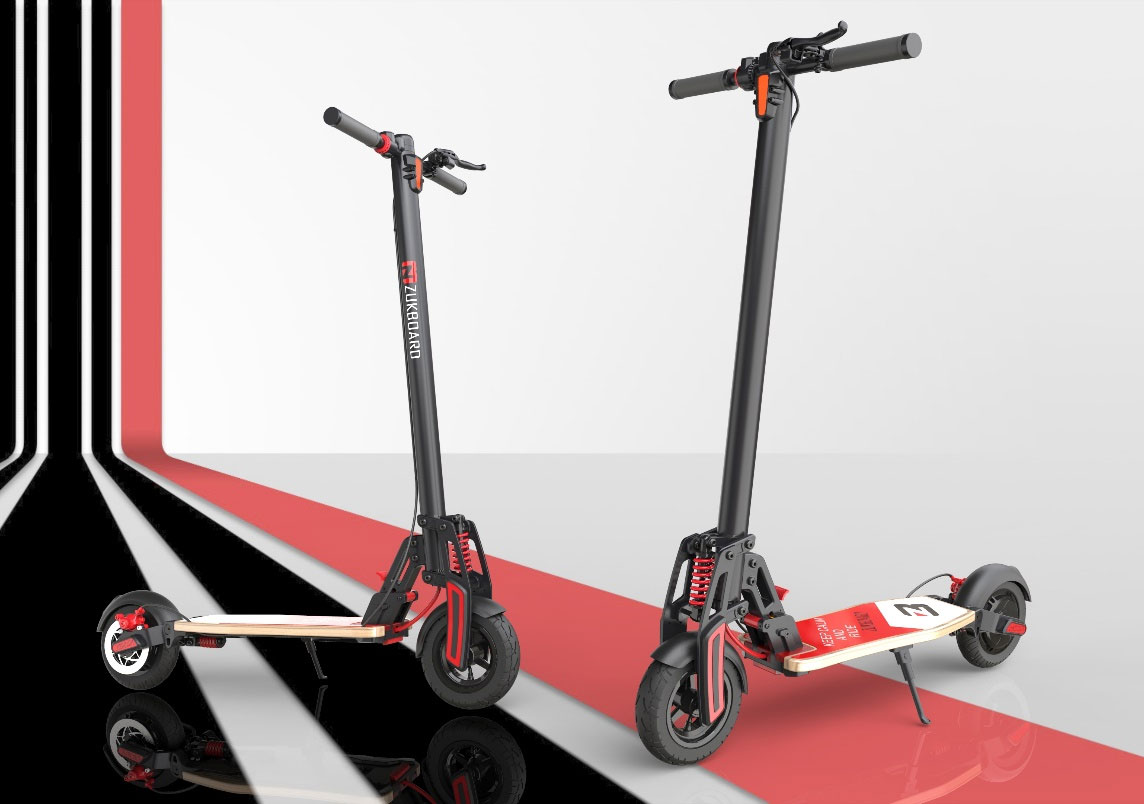

zukboard-electric-kickscooter-27

Who is behind ZUKBOARD?

It all began in 2016 when Farahbod Mohammadi was about to finish his PhD degree majoring in Construction Project Management. He has always been a fan of personal mobility devices and one of the very early adopters of Personal Mobility Devices (PMDs) in Malaysia. He noticed that electric scooters were regarded as a toy and not yet to be considered as a real mode of transport. Only 3 or 4 manufacturers, the majority of them from China, own the intellectual property in their design while others just manufacture replicate products only. When he obtained his PhD degree he packed and moved to China with the aid of his Chinese partner Lijie who is an electronic engineer, started shaping his idea and developing ZUKBOARD CITY.

ZUKBOARD is now seeking distributors and interested can contact us via email: Sales@ZUKBOARD.COM

Private users who wish to own and test ZUKBOARD CITY may proceed to purchase it from our official website directly and enjoy free online customization plus free worldwide shipping.

More info: http://www.zukboard.com/
