Eurobike 2017 MidDrive motors

Eurobike middrive motors

Eurobike starts in one month, and we are allready bringing u news with the Higlights of the Show.

This is possible, because all electric bike companies post their product news before they come to Eurobike. So if u are in Friedrichshafen; great. But if u are not planning to go there, check out the article

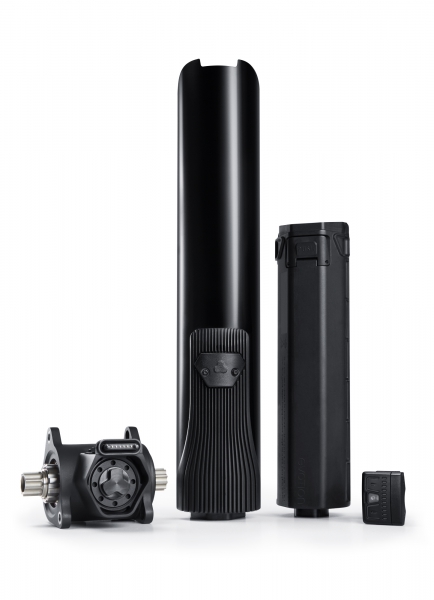

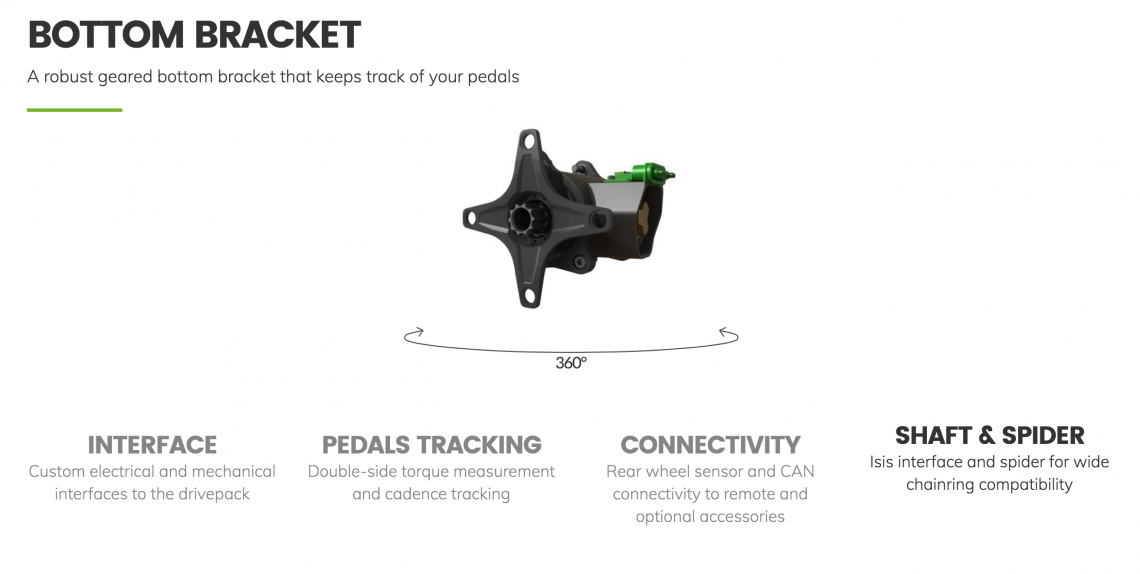

1. The Fazua motor

Power: 250-400 watt

Speed: 25kmh


More here


2.BMZ drive systems Midmotor

Specs are not very impressive, but this remains to be seen once we see a bike with BMZ :


  • Smallest and lightest mid-engine on the market
  • Durable power: 250 W
  • No change in frame and wheel clearance
  • Motor can be installed at different angles
  • Use of multi chain front possible
  • High efficiency of the drive system
  • Individually and perfectly matched set-up
  • Custom Motordesign


  • Up to 90 Nm of torque
  • IP 56
  • Brushless inner rotor
  • Power 36 V
  • Transmission stages 2 pieces
  • Speed ​​motor type 2500
  • Operating temperature from -10 ° C to + 50 ° C
  • Storage temperature from -20 ° C to + 70 ° C
  • Efficiency of 75% to 82%


  • 205 x 115 x 130 mm
  • 3.4 kg (Engine)

Bmz will also show their other products. Eurobike Highlights is battery design ; Intergrated batteries; so obviously Bmz is also offering downtube intergrated battery design for manufacturers.

Downtube Battery Inside

capacity 14.0 Ah
charging contact Binder connector
discharging contact blade contact
Connector Box
lockable Yes
retaining rail integrated
mass Approx. 2,940 g
Colour black

Seat tube Battery UR-V9 Inside

capacity 14.0 Ah
charging contact Rosenberger magnet plug
discharging contact Cable set integrated
Connector Box No
lockable Yes
retaining rail No (frame)
mass About 2,700 g
Colour black

They also have a huge range of other battery systems, hub motors that u can check here

3. Very Popular alternative to Bosch Motors – Brose motors


Technical data

We also know they have a 500 watt system so probably they are going to display it on Eurobike show

e-Bike brands with Brose motor:


4.Contitech Ebike motor

For various eBike concepts, the CeBS center motor offers an optimal flexibility for bicycle manufacturers. Thanks to its 360 ° variable installation, a wide range of integration possibilities is available, which allows individual bicycle concepts and designs.

Technical details

power 250 W nominal
torque 64 Nm nominal / 90 Nm maximum
mass 3.4 kg
Engine Type gearmotor
  • Reduced noise
  • Integrated controller
  • ISIS inner bearing with torque sensor technology
  • 420 sensor pulses per second
  • 2-way chainring possible
  • Versatile design and integration possibilities

more here

4.Pendix ebike motor


Drive system brushless bottom bracket motor
Performance 250 W nominal*
Speed (max) 25 km/h** = 15½ mph
Motor settings 3 modes
Torque (max) 50 Nm


Type lithium ion accumulator (removable)
Capacity 300 Wh / 500 Wh
Voltage 48 V
Charging time 3 hrs*** / 3 hrs 20 min****
Range (max) 105 km***** = 65.2 miles / 160 km***** = 99.4 miles

Performance mode :

Eco, Smart, Sport


More here

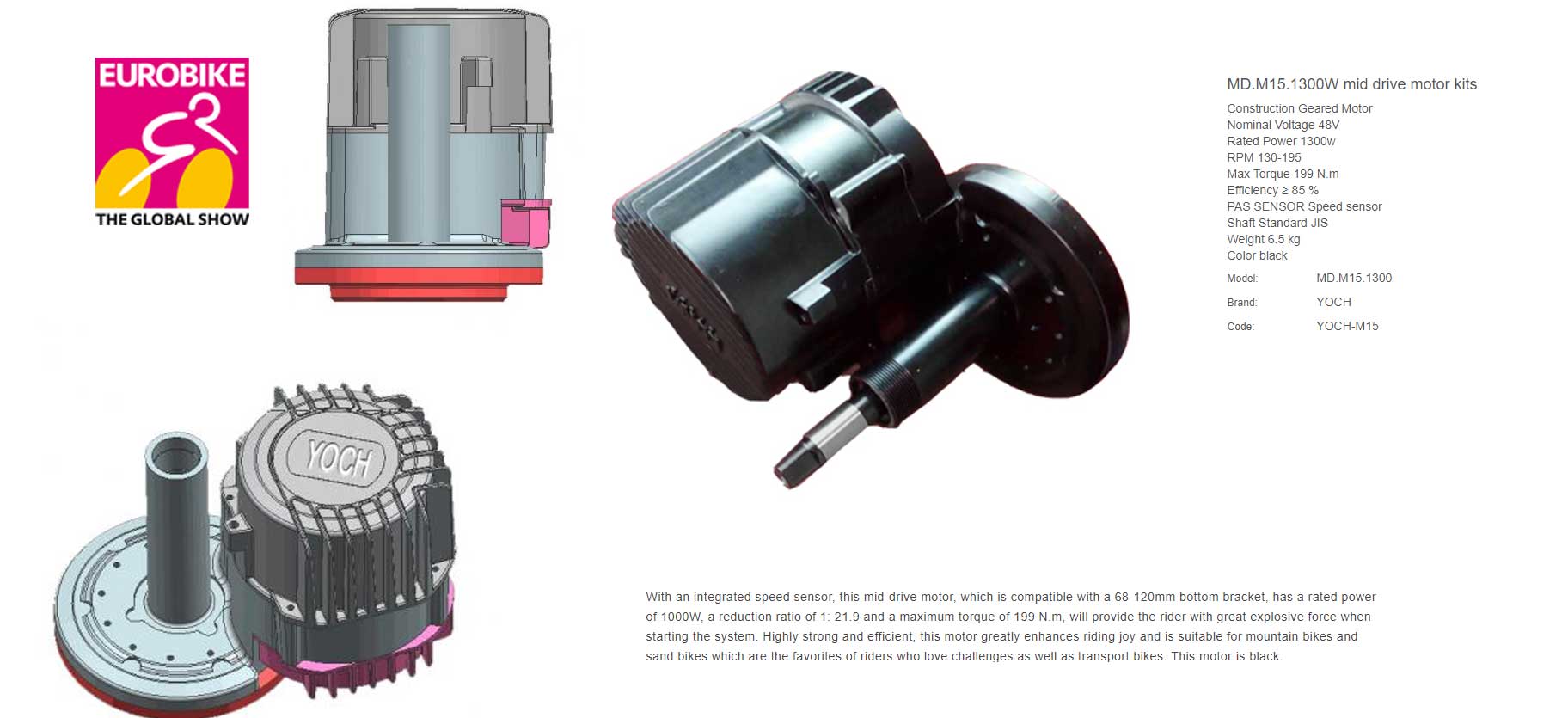

5. Yoch 1500 watt ebike midmotor


More specifications and information here


6. Ananda M80s TR motor


Position Center
Sensor Built-in Torque and Rotation Sensor
Rated Voltag 36V/48V
Rated Power 250W/350W
Efficiency ≥78%
Max.Torque 80Nm/85Nm
Weight ≤3.7kg
Color Black
IP Class IPX5

7. Tq Drives



Tq drives are motors that go into bikes like Spitzing

Performance info is in the video, if u want to know more, go here


7. TransX motor

We tried to get new info from them, but we still have nothing. U can check the post on Evnerds : Transx


Visit us tommorow here, we will put hub motor and battery maker products that will be featured on Eurobike
