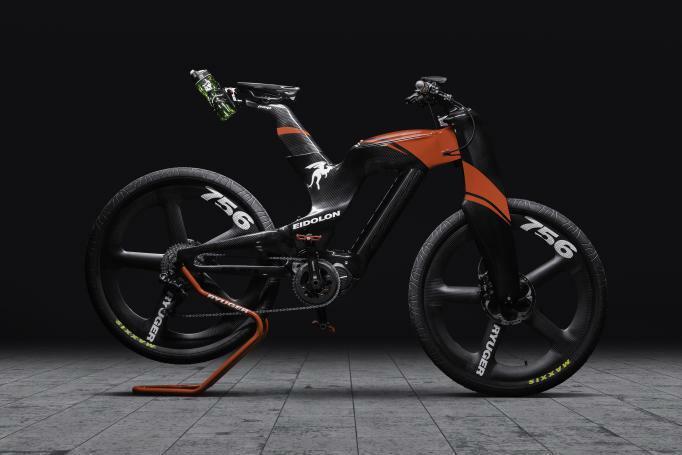

2021 Ryuger Eidolon BR-RTS Full Carbon Monocoque E-Bike

The 2021 Ryuger Eidolon BR-RTS Full Carbon Monocoque E-Bike is taking e-biking to the next level. The sleek aerodynamic lines, powerful twin front braking system, aggressive girder carbon forks and water-tight tank compartment puts the Ryuger Eidolon in a class of its own.

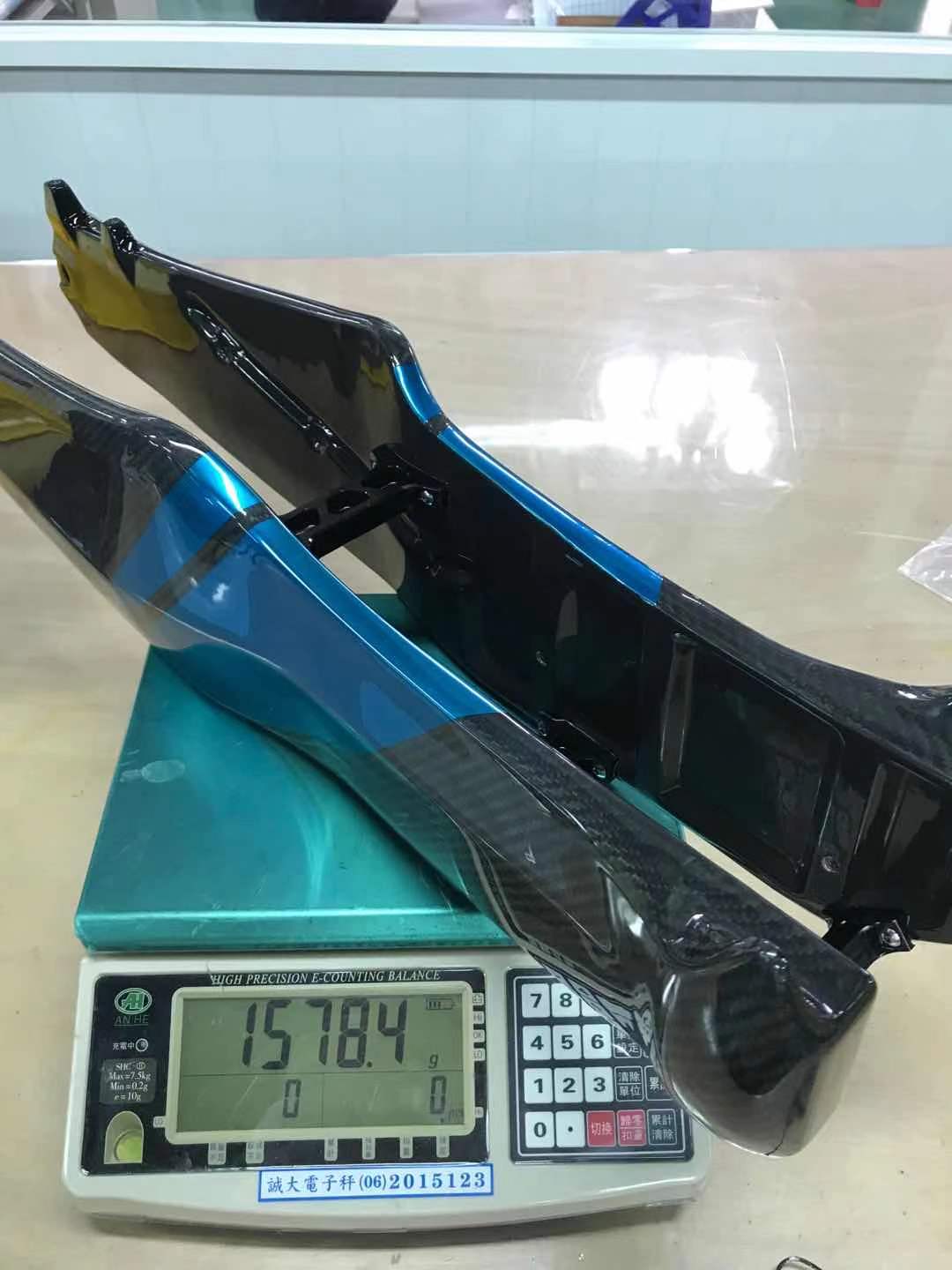

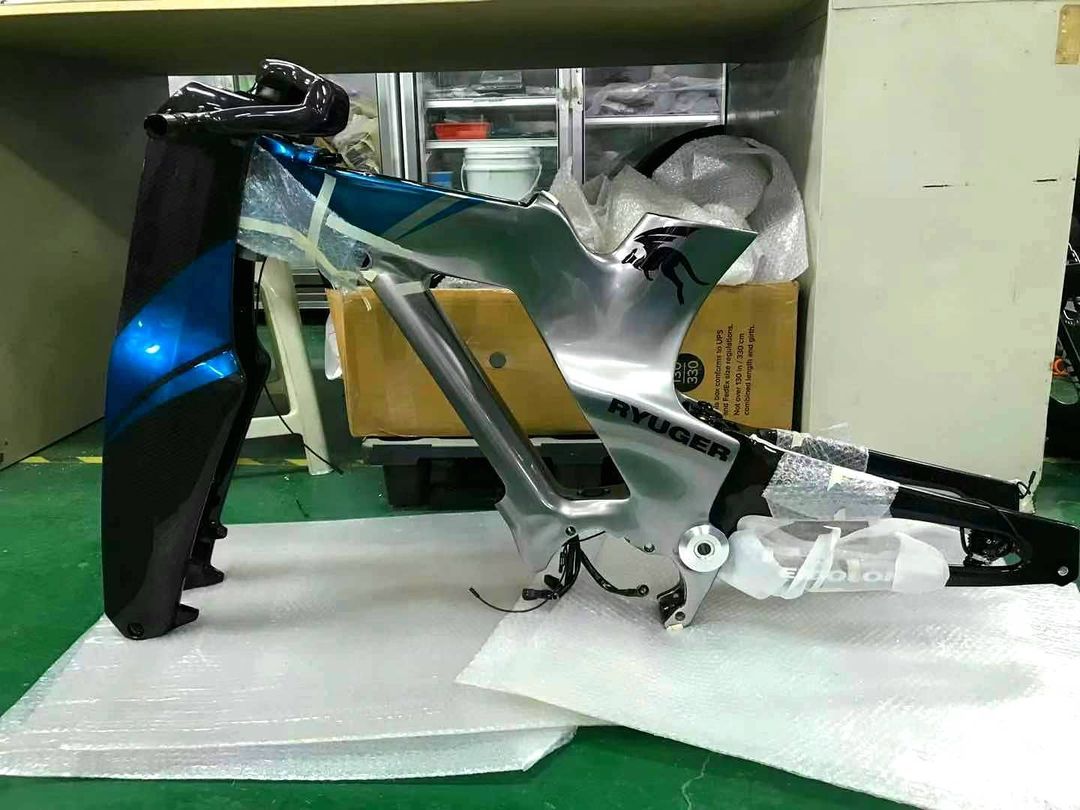

The Ryuger Eidolon continues to push the boundaries. The carbon frame not only looks unique but also features a revolutionary manufacturing process. Whereas conventional carbon construction includes bladder bags and pre-formers to expand the carbon frame, Ryuger has developed a unique process eliminating the bags, using less carbon while increasing strength and agility on the road.

Ryuger has again developed in-house a complete bespoke aerodynamic system around a proven drivetrain. Featuring the new Ryuger drop carbon handlebars for better ride aerodynamics, carbon rear swing arm with increased rigidity, unique blade carbon forks for improved aerodynamics, adjustable carbon seat post and proven lightweight Ryuger 756 carbon aero wheels.

State of Art Girder Front Fork

Ryuger E-bikes also features real-world flexibility, allowing fitment of Ryuger crafted 29″ carbon rims for daily road commuting or Ryuger 26″ 630 fat rims for snow or sand. The powerful Shimano drivetrain also includes 3 stage pedal power assist, allowing for a range of riding styles, from daily commuting to the experienced cyclist looking for a new experience. To complete the package, each Ryuger E-Bike includes a personalized 3-step adjustable stand for maintenance or simply to look and admire.


Ryuger has again developed in-house a complete bespoke aerodynamic system around a proven drivetrain. Featuring the new Ryuger drop carbon handlebars for better ride aerodynamics, carbon rear swing arm with increased rigidity, unique blade carbon forks for improved aerodynamics, adjustable carbon seat post and proven lightweight Ryuger 756 carbon aero wheels.

Ryuger E-bikes also features real-world flexibility, allowing fitment of Ryuger crafted 29″ carbon rims for daily road commuting or Ryuger 26″ 630 fat rims for snow or sand. The powerful Shimano drivetrain also includes 3 stage pedal power assist, allowing for a range of riding styles, from daily commuting to the experienced cyclist looking for a new experience. To complete the package, each Ryuger E-Bike includes a personalized 3-step adjustable stand for maintenance or simply to look and admire.

The passionate team at Ryuger have tirelessly developed the Eidolon E-Bike to offer the best of both worlds. The flexibility required for daily commuting while challenging passionate and elite cyclists to push their limits to a new level.

2021 Ryuger Eidolon BR-RTS Full Carbon Monocoque E-Bike

Parts used:

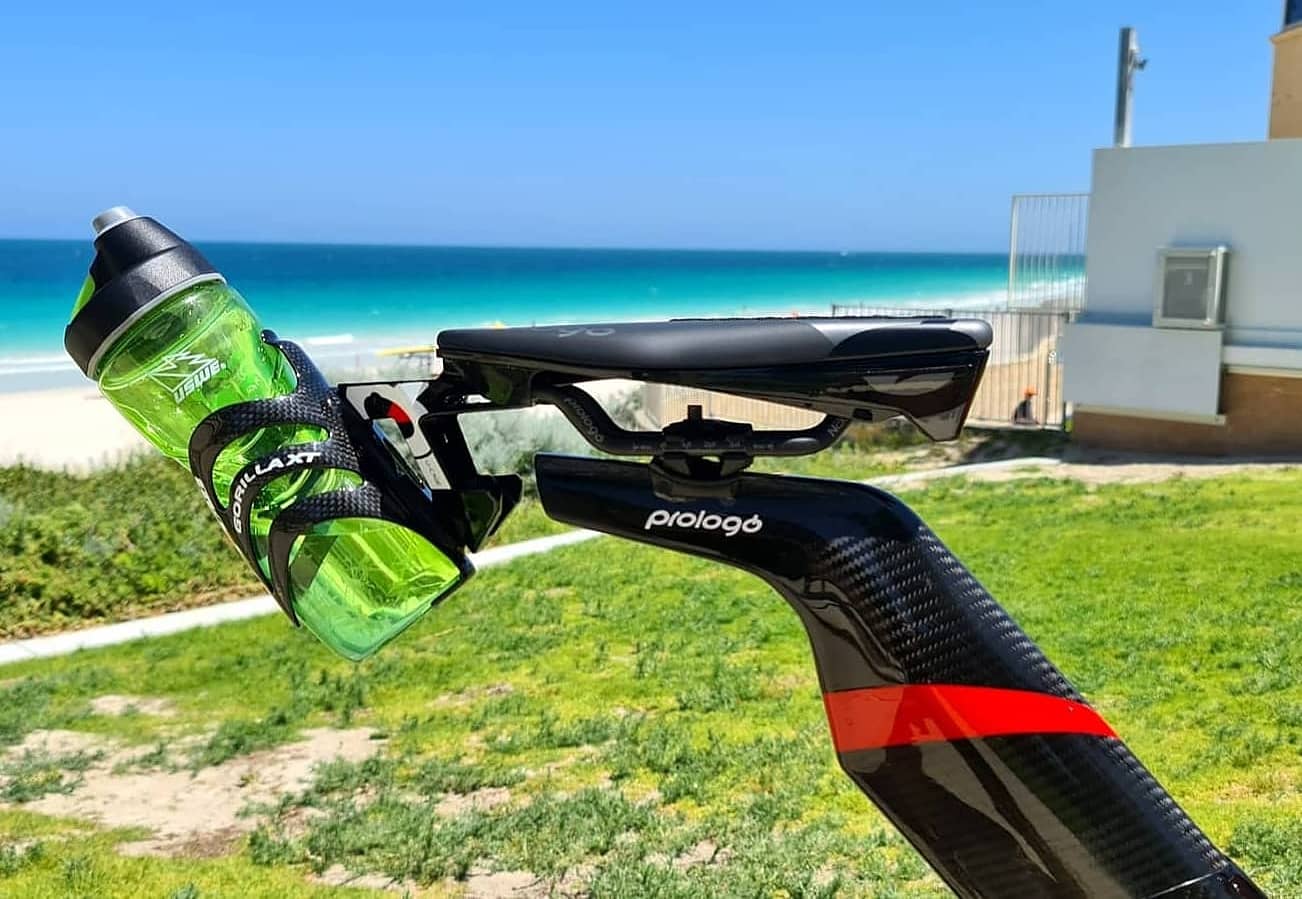

Seat Post: Ryuger Carbon Aero Adjustable
Cable Routing: Internal Cable
Front Forks: Ryuger Monocoque Carbon Girder 29″ Cane Creek DB Coil 190/50 400LBS
Rear Shock: Cane Creek DB Coil 190/50 650 LBS
Tire: front and rear Maxxis Hookworm 29 x 2.5
Battery: Shimano BT-E8035 504Wh Intergraded
Display: Shimano SC-E6100
Motor Shimano: Steps E8000
Crankset Shimano Steps: FC-E8000
Rims: Ryuger Carbon 5 spoke 29″
Saddle: Prologo T Gale TT CPC Rail Nack Carbon with U Cage
Handle Bars: Ryuger Carbon Drop aero bars
Rear Derailleur: Shimano Di2 XT
Brakes: Front Tektro Twin system Rear Shimano XT
Brake Leavers Shimano XT
Discs: Shimano Front Rotors 203mm x 2 /Rear 1 x 203mm
Stem: Ryuger
Pedals. Shimano XTR
Chainring: Digirit Carbon 48T
Tank carrying compartment: 3 liters
Color choice: Acid Avocado/ Spacing Racing
Weight: 19kgs

We are waiting to see the video, and while we do that; check out Ryuger bikes made before 2021. here

For more pictures and information about Ryuger bikes, you can follow the work of our Japan based guys on their Instagram.
