TELEPORT LIGHT Electric bike from VELOMASTERA

We like the quality and lines of this electric bike designed up to the last detail. Teleport light electric bike is high power beast designed to be light with a lot of battery space.There are options to buy frame only, and finished ebike from Russian Electric bike maker.

General Specifications of Teleport Light Electric Bike

teleport-electric-bike
Wheelbase: 1150mm, when using a fork with a stroke of 200mm
The maximum dimensions of a removable battery: 310x160x80mm
The permissible number of cells 18650 for a removable battery: 160+ pcs.
Maximum dimensions of a static battery: 350х180х95mm
The permissible number of cells 18650 for a static battery: 220+ pcs.
Leverage of the pendulum: 1 / 3.7 or 1 / 4.5
Width between dropouts: 142mm
Max. Wheel width: 80mm
Cradle location: under the battery compartment
Seat options: bike/moto
Maximum wheel diameter: 700mm
Dropouts: removable, vertical under a slight slope
Hole for chain tensioner: Yes
Rake: 20 degrees
Battery loading: side / top
Rear shock absorber: bicycle
Length of rear shock absorber: 190-220mm
Maximum number of teeth of the system: 48
Geometry: mountain bike
Carrying capacity: 160kg

high power electric bike driver

OTHER INFORMATION

Shock absorber: stroke 80-200mm
Rear shock absorber: landing width 24mm, axle 8mm. 160mm for a fork with a stroke of 80-90mm, 180mm for a fork with a stroke of 100-140mm, 190mm for a fork with a stroke of 140-160mm, 200mm for a fork with a stroke of 200mm
Wheels and tires (bicycle): 24 “- 80mm rim, tire up to 3.0”, 26 “- 64mm rim, tires up to 2.5”
Wheels and tires (moto): 19 “rim 2.7 tires, 18” rim 3.6 tires, 17 “rim 4.2 tires

There are two options that differ in motor power and battery power for finished bikes:


1.TELEPORT Light – BASIC

high power electric bike

Power – 3500 Watts
Mileage – 60/90 km
Speed – ​​75 km / h
Weight – 36 kg

2.TELEPORT Light – POWERFULL

electric bike

Power – 5000 Watts
Mileage – 70/110 km
Speed ​​- 85 km / h
Weight – 44 kg

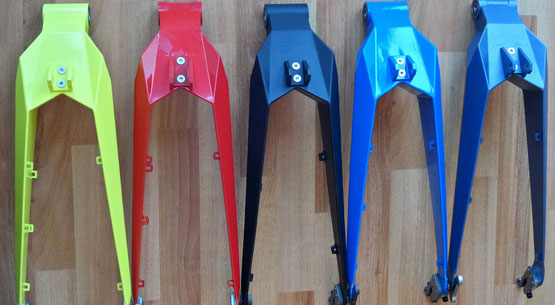

Ofcourse you can choose the color of your bike. Here are some rear swingarm images of color finish

Video





Go to VELOMASTERA for more Teleport Electric Bike info
